Truck/RV

A Downdraft Product

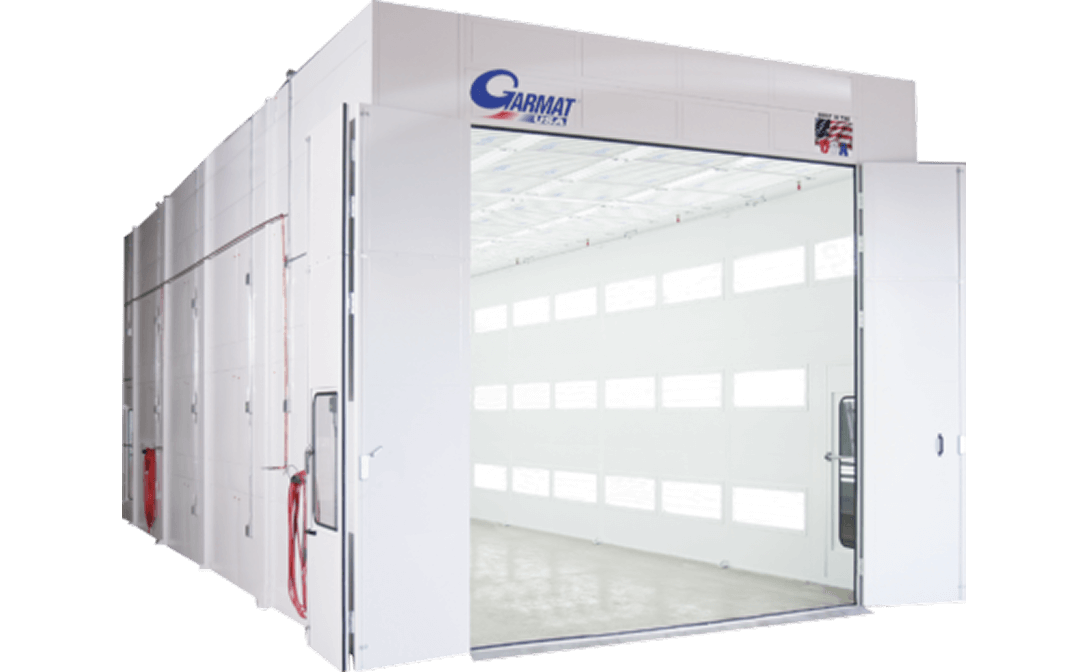

Garmat® USA offers an extensive line of Truck, RV, Custom and Industrial refinishing equipment. We offer standard and custom designed equipment to meet specific requirements for Automotive, Commercial, Heavy-Duty and Industrial applications. Custom engineered to meet your specific requirements.

Garmat® USA, Inc. has many installations throughout North America in truck shops, RV paint facilities and manufacturing plants. Standard sizes from 35’ to 70’ in length, with widths and heights starting at 16’. Custom sizes are available. Although full downdraft capability is often desirable, pit-less versions are offered. Single or Double Skin fully insulated cabins.

As with all Garmat USA equipment, our Industrial line provides the latest technology in a safe and efficient working environment for your refinish facility. ETL Listed.

image alt text

The Highlights

Downdraft Truck Booth 36 Ft

Interior:
35′ 4-3/8″ x 16′ x 15′ 11″

Exterior:
35’ 8-3/8” x 16’ 8” x 15’ 11” H

Entry Opening:
12′ H x 15′ 9″ W

Doors:

  • 4 leaf Heavy Duty Doors
  • 12’ W x 15’ 9”H Product Entryway
  • 3 Personnel Service Doors

Light fixtures:

Dual Skin:
  • 3 Light Rows – 36 Light Fixtures/ 144 Light Fixtures
  • 2 Light Rows – 30 Light Fixtures/ 120 Light Fixtures
Single Skin:
  • 3 Light Rows – 24 Light Fixtures/ 96 Light Fixtures
  • 2 Light Rows – 16 Light Fixtures/ 64 Light Fixtures

  • Horizontal orientation for optimal illumination.
  • All interior accessible for ease of maintenance.

Exhaust Configuration

Choice of:

  • Downdraft
  • Sidedraft
  • Crossdraft
  • Semi-down

Choice of Mechanicals

99275
  • Dual Inlet Reverse Incline Fan featuring Airfoil Blades on Supply and Exhaust
  • (2) 10 or 15 HP High Efficiency Motors
  • Choice of 1.0 or 1.5 MBTU Direct fired heater with fast temperature rise, features Aluminum and Stainless Steel
  • Burner construction
  • HMI State of the art controls
  • Recycle on Bake
  • VFD on Exhaust
99375
  • Dual Inlet Reverse Incline Fan featuring Airfoil Blades on Supply and Exhaust
  • (2) 20 or 25 HP High Efficiency Motors
  • Choice of 2.0 – 2.5 MBTU Direct fired heater with fast temperature rise, features Aluminum and Stainless Steel
  • Burner construction
  • HMI State of the art controls
  • Recycle on Bake
  • VFD on Exhaust

Downdraft Truck Booth 44 Ft

Interior:
44′ 2-3/4″ x 16′ x 15′ 11″

Exterior:
44’ 6-3/4” x 16’ 8” x 18’4’-1/2”

Entry Opening:
12′ H x 15′ 9″ W

Doors:

  • 4 leaf Heavy Duty Doors
  • 12’ W x 15’ 9”H Product Entryway
  • 3 Personnel Service Doors

Light fixtures:

Dual Skin:
  • 3 Light Rows – 57 Light Fixtures/ 228 Light Fixtures
  • 2 Light Rows – 37 Light Fixtures/ 148 Light Fixtures
Single Skin:
  • 3 Light Rows – 30 Light Fixtures/ 120 Light Fixtures
  • 2 Light Rows – 20 Light Fixtures/ 80 Light Fixtures

  • Horizontal orientation for optimal illumination.
  • All interior accessible for ease of maintenance.

Exhaust Configuration

Choice of:

  • Downdraft
  • Sidedraft
  • Crossdraft
  • Semi-down

Choice of Mechanicals

99275
  • Dual Inlet Reverse Incline Fan featuring Airfoil Blades on Supply and Exhaust
  • (2) 10 or 15 HP High Efficiency Motors
  • Choice of 1.0 or 1.5 MBTU Direct fired heater with fast temperature rise, features Aluminum and Stainless Steel
  • Burner construction
  • HMI State of the art controls
  • Recycle on Bake
  • VFD on Exhaust
99375
  • Dual Inlet Reverse Incline Fan featuring Airfoil Blades on Supply and Exhaust
  • (2) 20 or 25 HP High Efficiency Motors
  • Choice of 2.0 – 2.5 MBTU Direct fired heater with fast temperature rise, features Aluminum and Stainless Steel
  • Burner construction
  • HMI State of the art controls
  • Recycle on Bake
  • VFD on Exhaust

Downdraft Truck Booth 53 Ft

Interior:
53′ 1-1/8″ x 16′ x 15′ 11″

Exterior:
53’ 5-1/8” x 16’ 8” x 18’4’-1/2”

Entry Opening:
12′ H x 15′ 9″ W

Doors:

  • 4 leaf Heavy Duty Doors
  • 12’ W x 15’ 9”H Product Entryway
  • 3 Personnel Service Doors

Light fixtures:

Dual Skin:
  • 3 Light Rows – 69 Light Fixtures/ 276 Light Fixtures
  • 2 Light Rows – 45 Light Fixtures/ 180 Light Fixtures
Single Skin:
  • 3 Light Rows – 36 Light Fixtures/ 144 Light Fixtures
  • 2 Light Rows – 24 Light Fixtures/ 96 Light Fixtures

  • Horizontal orientation for optimal illumination.
  • All interior accessible for ease of maintenance.

Exhaust Configuration

Choice of:

  • Downdraft
  • Sidedraft
  • Crossdraft
  • Semi-down

Choice of Mechanicals

99275
  • Dual Inlet Reverse Incline Fan featuring Airfoil Blades on Supply and Exhaust
  • (2) 10 or 15 HP High Efficiency Motors
  • Choice of 1.0 or 1.5 MBTU Direct fired heater with fast temperature rise, features Aluminum and Stainless Steel
  • Burner construction
  • HMI State of the art controls
  • Recycle on Bake
  • VFD on Exhaust
99375
  • Dual Inlet Reverse Incline Fan featuring Airfoil Blades on Supply and Exhaust
  • (2) 20 or 25 HP High Efficiency Motors
  • Choice of 2.0 – 2.5 MBTU Direct fired heater with fast temperature rise, features Aluminum and Stainless Steel
  • Burner construction
  • HMI State of the art controls
  • Recycle on Bake
  • VFD on Exhaust

Downdraft Truck Booth 63 Ft

Interior:
61′ 3-3/8 ” x 16′ x 15′ 11″

Exterior:
62’ 11-3/8” x 16’ 8” x 18’4’-1/2”

Entry Opening:
12′ H x 15′ 9″ W

Doors:

  • 4 leaf Heavy Duty Doors
  • 12’ W x 15’ 9”H Product Entryway
  • 3 Personnel Service Doors

Light fixtures:

Dual Skin:
  • 3 Light Rows – 81 Light Fixtures/ 324 Light Fixtures
  • 2 Light Rows – 53 Light Fixtures/ 212 Light Fixtures
Single Skin:
  • 3 Light Rows – 42 Light Fixtures/ 168 Light Fixtures
  • 2 Light Rows – 28 Light Fixtures/ 112 Light Fixtures

  • Horizontal orientation for optimal illumination.
  • All interior accessible for ease of maintenance.

Exhaust Configuration

Choice of:

  • Downdraft
  • Sidedraft
  • Crossdraft
  • Semi-down

Choice of Mechanicals

99275
  • Dual Inlet Reverse Incline Fan featuring Airfoil Blades on Supply and Exhaust
  • (2) 10 or 15 HP High Efficiency Motors
  • Choice of 1.0 or 1.5 MBTU Direct fired heater with fast temperature rise, features Aluminum and Stainless Steel
  • Burner construction
  • HMI State of the art controls
  • Recycle on Bake
  • VFD on Exhaust
99375
  • Dual Inlet Reverse Incline Fan featuring Airfoil Blades on Supply and Exhaust
  • (2) 20 or 25 HP High Efficiency Motors
  • Choice of 2.0 – 2.5 MBTU Direct fired heater with fast temperature rise, features Aluminum and Stainless Steel
  • Burner construction
  • HMI State of the art controls
  • Recycle on Bake
  • VFD on Exhaust

Customize your Paint Booth to fit your process

Easily configure your paint booth step by step. Choose features, preview options, and build a setup that fits your process
